Thermal Pad for ERP Light Modules

NETP-ERP

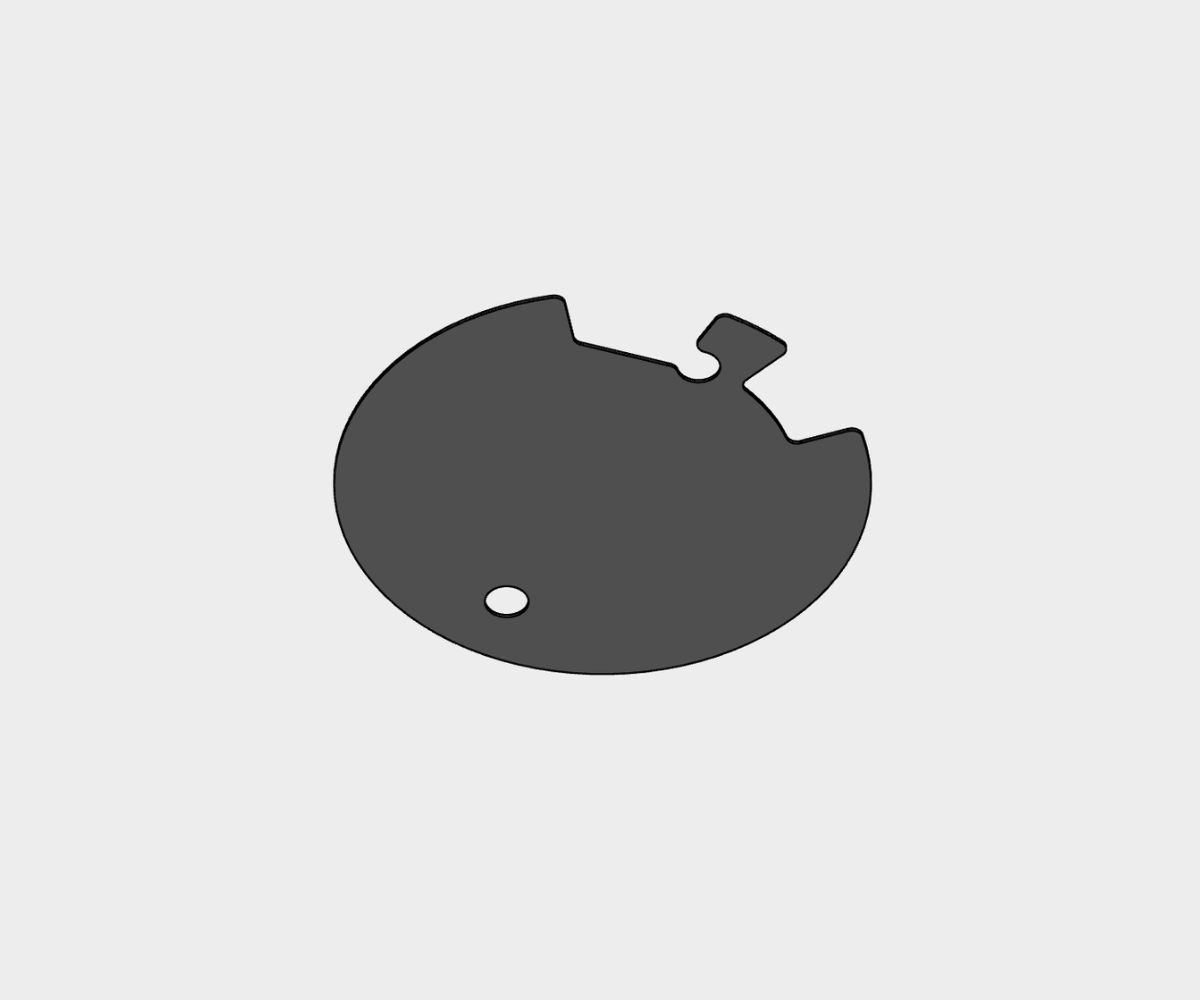

A circular, dark gray component with two cutouts and a small protruding tab along the edge, plus a tiny central hole.

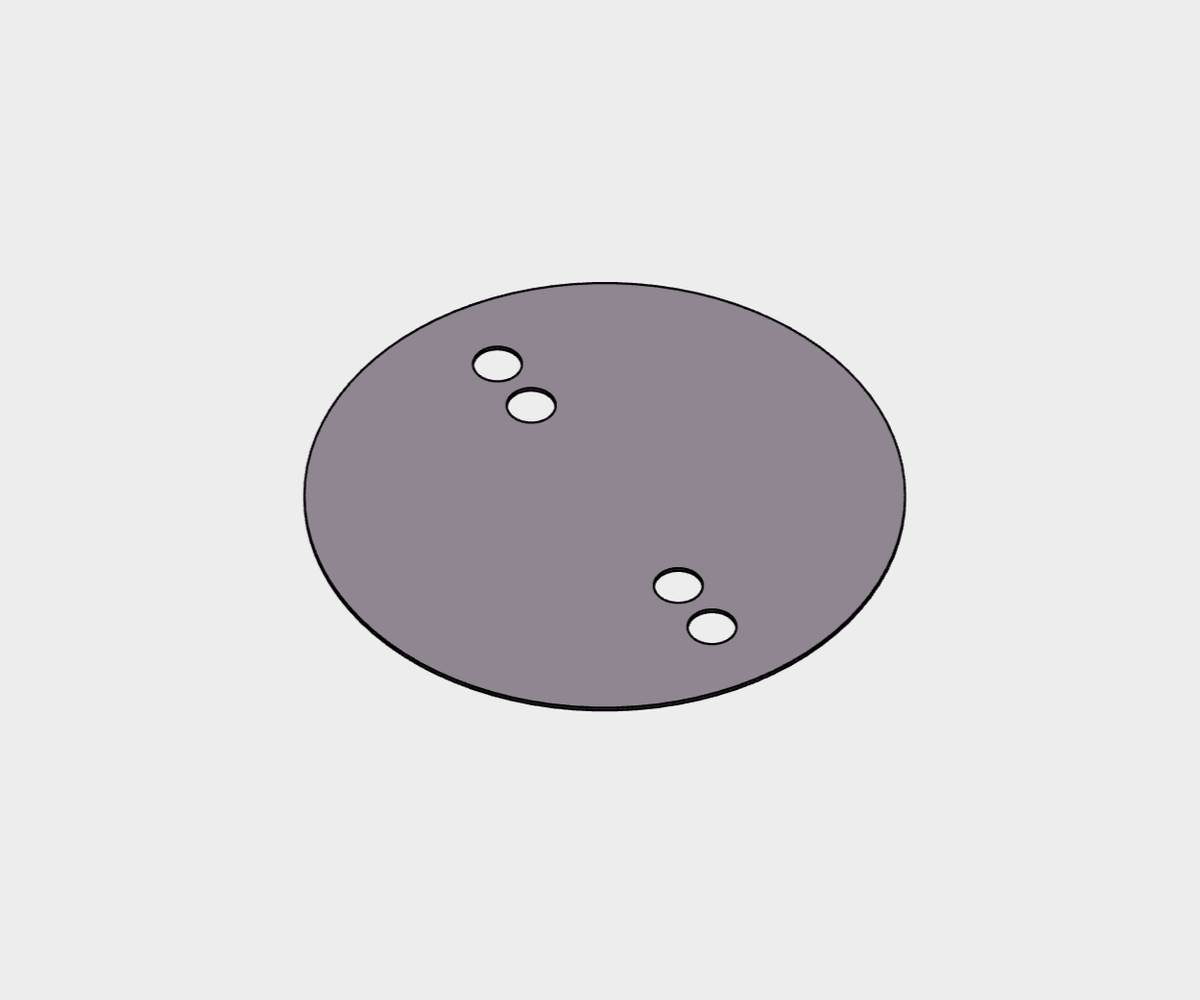

A flat, grey, circular metal plate featuring two pairs of small, evenly spaced holes arranged along the center axis.

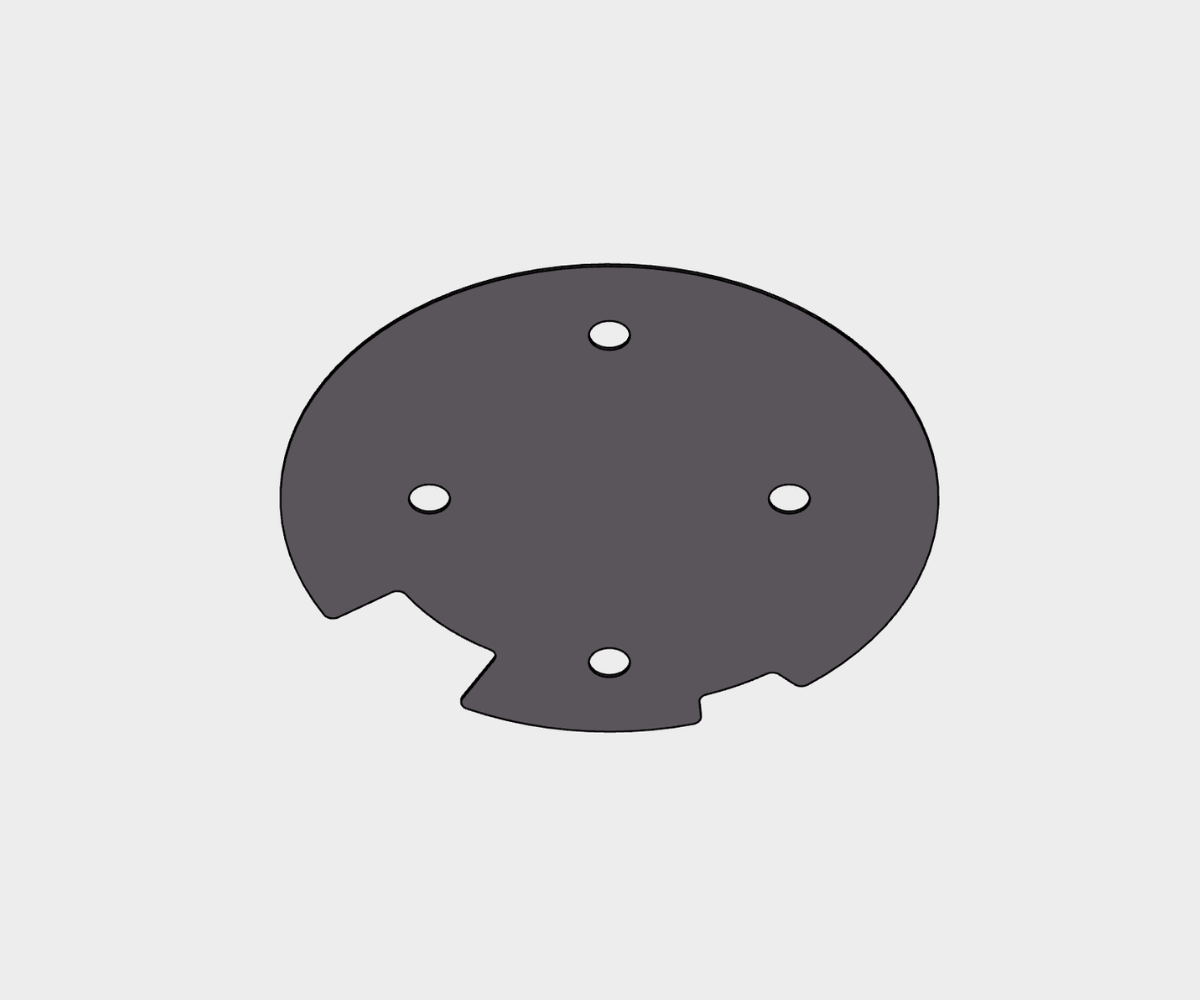

A dark gray circular disc with four small circular holes arranged in a cross pattern and two notched cutouts at the edge.

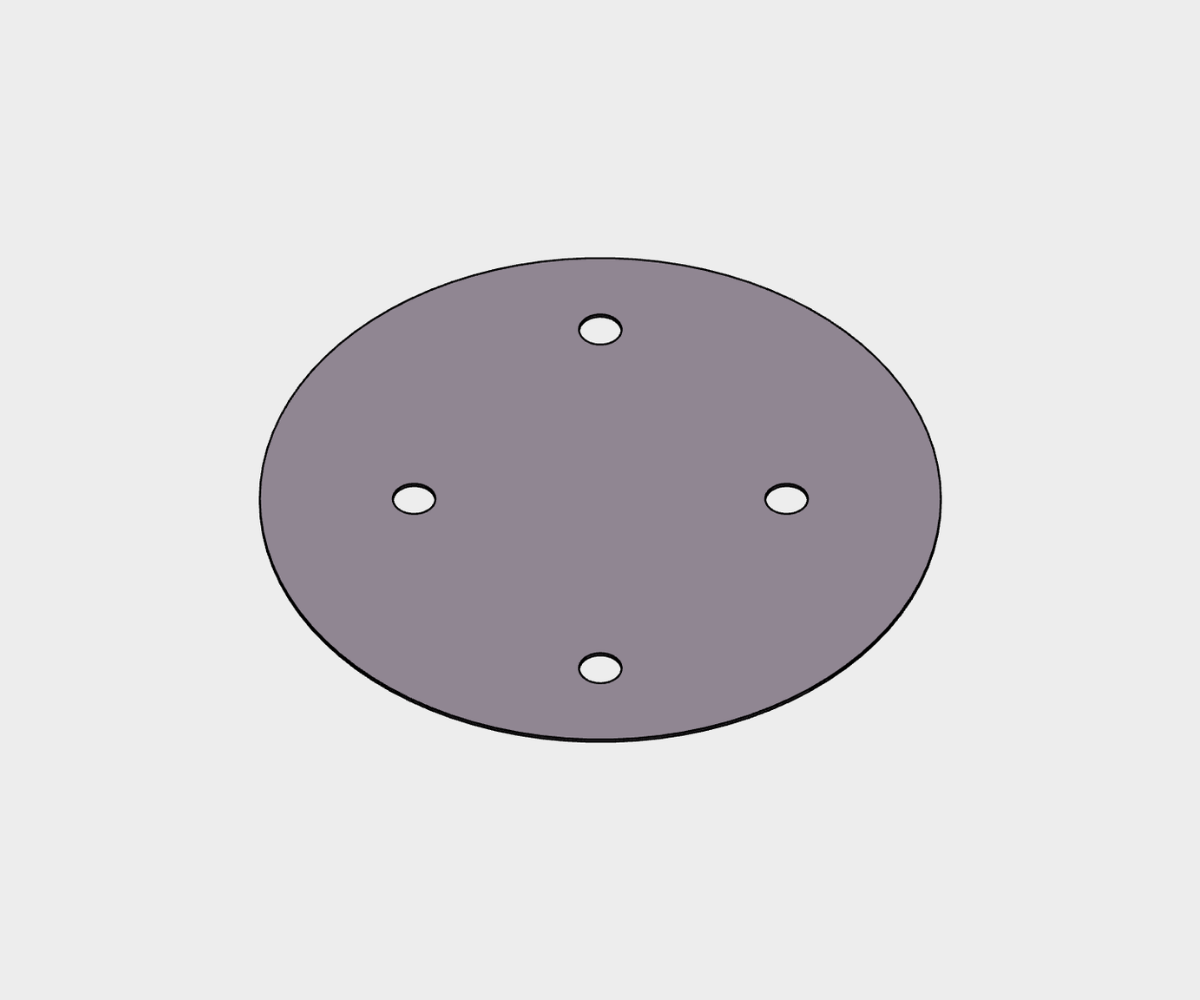

A flat, circular, grey plate with four evenly spaced small circular holes arranged in a square pattern.

Primary Applications: ERP Light Modules

TWM2 SWM1
AWM1 SWM2
SWC-28 TWC
SWC-50 TWM1
SWC-65

Features and Benefits

NEHS-ERP-nn-00n thermal pads feature custom sizing and screw clearances for use with all ERP Light Modules using NewEnergy heat sinks.

A solid black square on a white background.

Designed in the United States.

A solid black square on a white background.

Thickness 0.3mm.

A solid black square on a white background.

Thermal conductivity of 3 W/(m·K)

A solid black square on a white background.

Shipped with protective film on both sides

A solid black square on a white background.

Individually packaged for protection during shipping.

A black square centered on a white background.

Additional custom shapes, thicknesses and thermal conductivity values available. Give us a call or send us your sketch for a quote.

A solid black square on a white background.

ERP base light modules are listed. NETP-ERP is designed to mate with NewEnergy designed heat sinks.

All values shown above are typical unless noted.

* ERP 28 Series Light Modules are currently in development.

Complementary heat sinks and thermal pads will be available after the light module is realeased.

***All Thermal Pads listed below have a thermal conductivity of 3 W/(m·K) and a thickness of 0.3 mm.

NETP-ERP – Thermal Pad for ERP Light Modules Part Number Table

For Use with (1) Wire Configuration NewEnergy Thermal Pad
AWM1 Rear NETP-ERP-50-000
AWM1 Side NETP-ERP-50-001
SWC-28 Rear NETP-ERP-28-000*
SWC-28 Side NETP-ERP-28-001*
SWC-50 Side NETP-ERP-50-001
SWC-65 Side NETP-ERP-65-001
SWM1 Rear NETP-ERP-50-000
SWM1 Side NETP-ERP-50-001
SWM2 Rear NETP-ERP-65-000
SWM2 Side NETP-ERP-65-001
TWC Rear NETP-ERP-50-000
TWC Side NETP-ERP-50-001
TWM1 Rear NETP-ERP-50-000
TWM1 Side NETP-ERP-50-001
TWM2 Rear NETP-ERP-65-000
TWM2 Side NETP-ERP-65-001

(1) ERP base light modules are listed. NETP-ERP is designed to mate with NewEnergy designed heat sinks.

All values shown above are typical unless noted.

* ERP 28 Series Light Modules are currently in development.

Complementary heat sinks and thermal pads will be available after the light module is realeased.

***All Thermal Pads listed below have a thermal conductivity of 3 W/(m·K) and a thickness of 0.3 mm.

NETP-ERP – Thermal Pad for ERP Light Modules Part Number Table

For Use with Wire Configuration NewEnergy Thermal Pad
AWM1 Rear NETP-ERP-50-000
AWM1 Side NETP-ERP-50-001
SWC-28 Rear NETP-ERP-28-000*
SWC-28 Side NETP-ERP-28-001*
SWC-50 Side NETP-ERP-50-001
SWC-65 Side NETP-ERP-65-001
SWM1 Rear NETP-ERP-50-000
SWM1 Side NETP-ERP-50-001
SWM2 Rear NETP-ERP-65-000
SWM2 Side NETP-ERP-65-001
TWC Rear NETP-ERP-50-000
TWC Side NETP-ERP-50-001
TWM1 Rear NETP-ERP-50-000
TWM1 Side NETP-ERP-50-001
TWM2 Rear NETP-ERP-65-000
TWM2 Side NETP-ERP-65-001

Custom Heat Sink for ERP Light Modules

NEHS-ERP

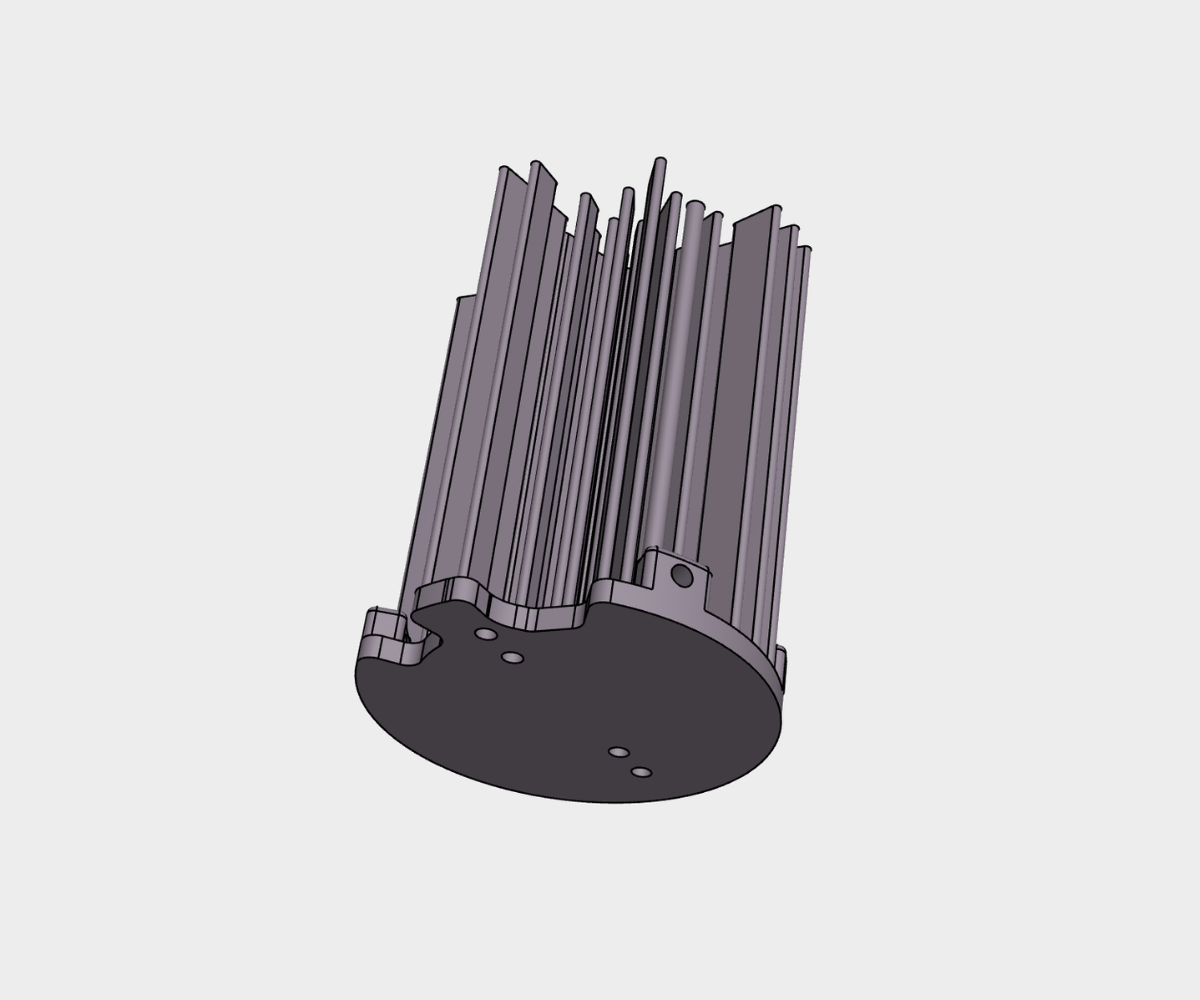

A 3D CAD model of a grey cylindrical heatsink with vertical fins on a circular base.

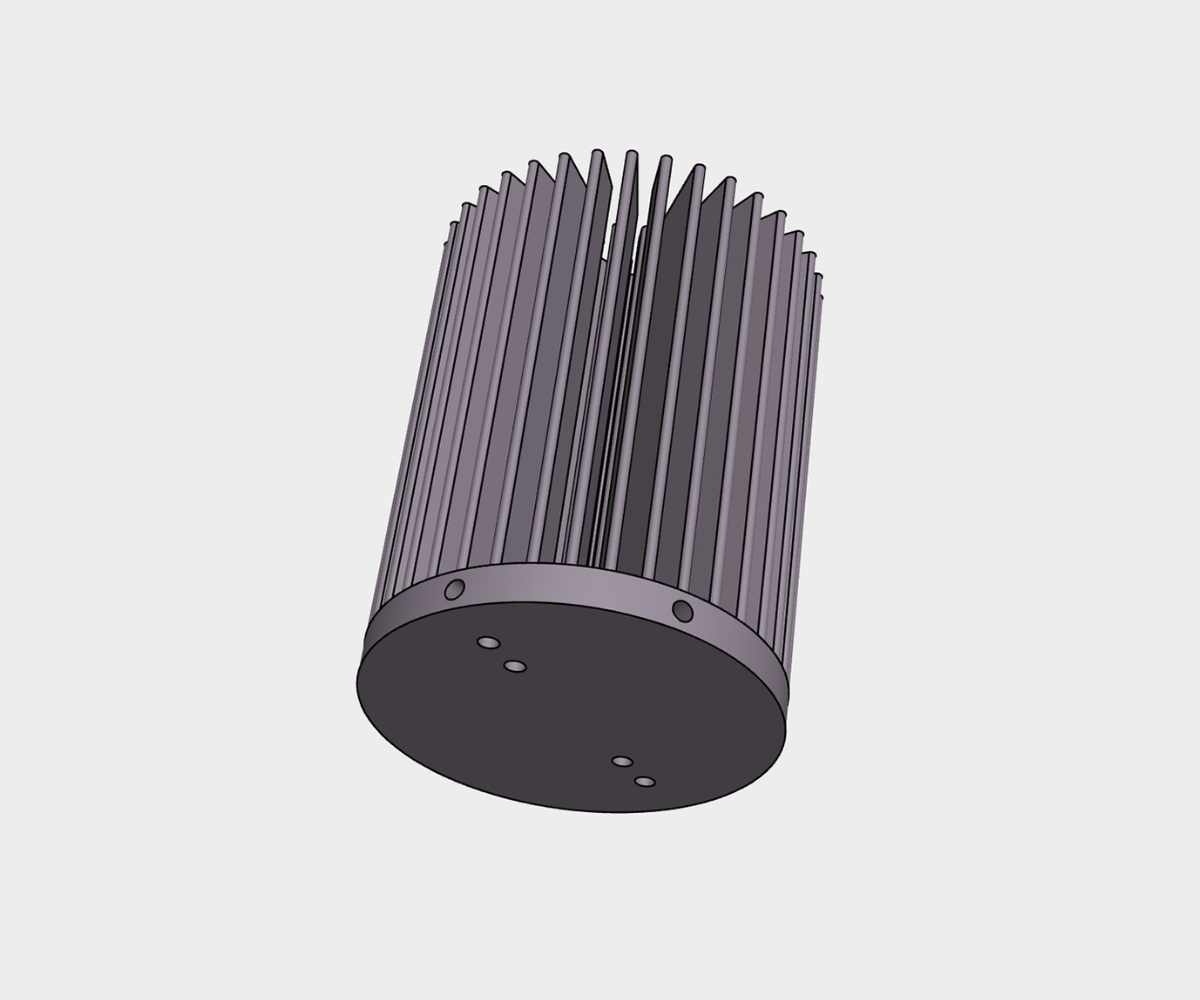

A cylindrical, dark grey aluminum heat sink with vertical cooling fins and a flat, circular mounting base.

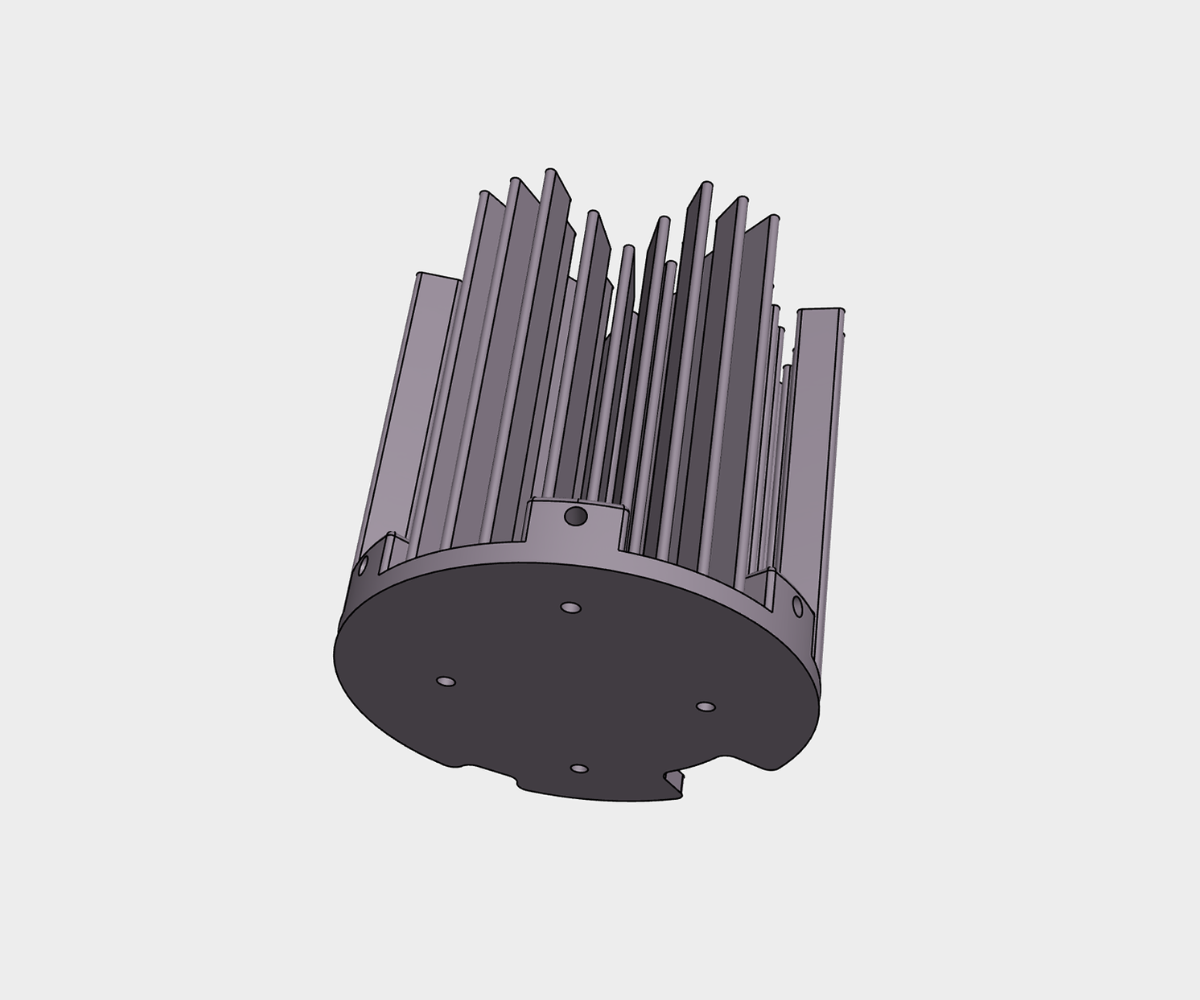

A dark gray, cylindrical metal heat sink with vertical cooling fins and a flat, circular base featuring mounting holes.

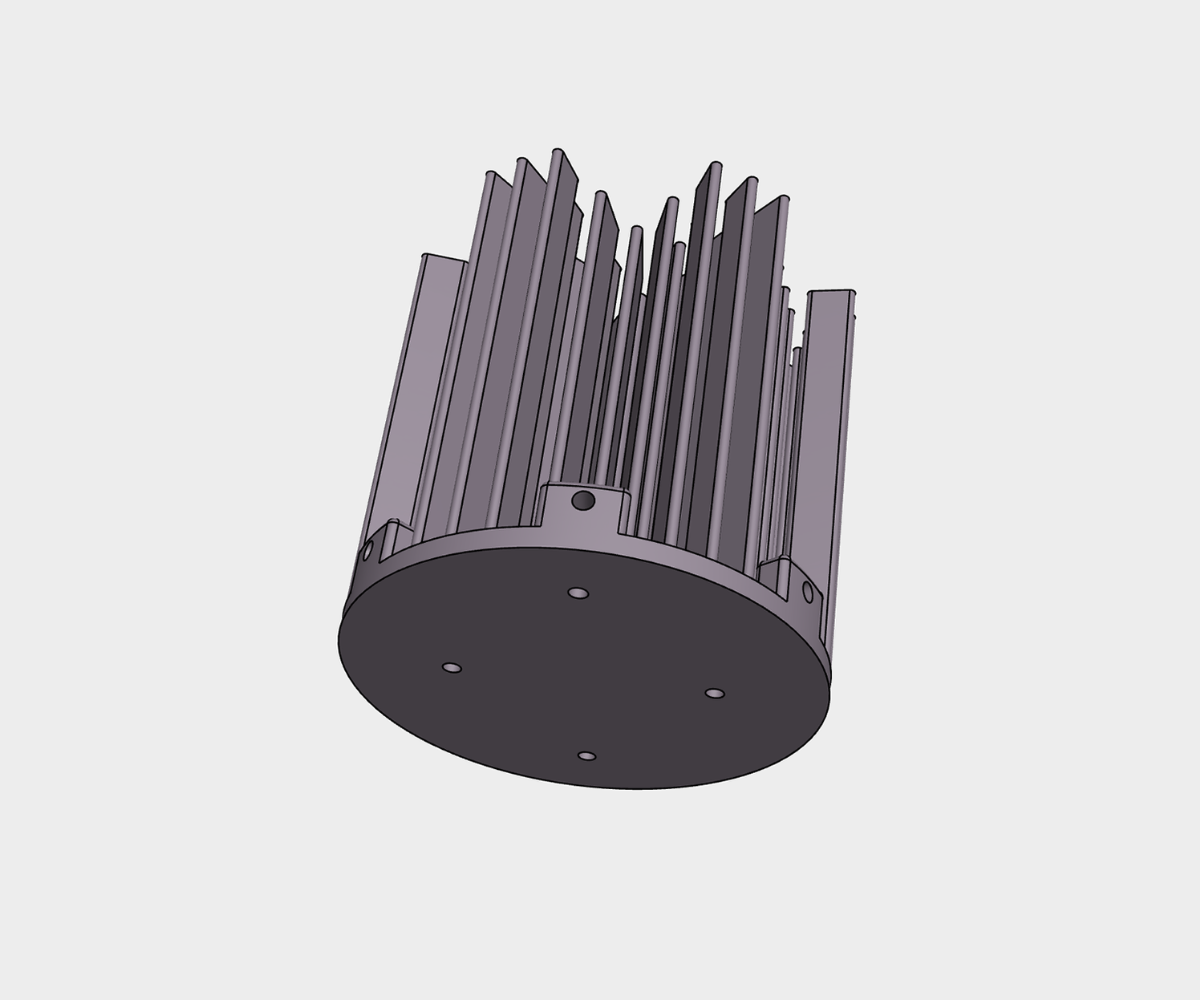

A grey cylindrical heat sink with vertical cooling fins and a flat circular base containing four mounting holes.

Primary Applications: ERP Light Modules

TWM2 SWM1
AWM1 SWM2
SWC-28 TWC
SWC-50 TWM1
SWC-65

Features and Benefits

NEHS-ERP-nn-00n thermal pads feature custom sizing and screw clearances for use with all ERP Light Modules using NewEnergy heat sinks.

A solid black square on a white background.

Designed in the United States.

A solid black square on a white background.

Finish – black anodized

A solid black square on a white background.

Material – aluminum alloy, selected for maximum thermal conductivity.

A black square on a white background.

Base thickness 3mm.

A solid black square on a white background.

Horizontal M3-0.5 mounting holes at 180° & 120°.

A solid black square on a white background.

Additional custom shapes and thermal solutions available. Give us a call or send us your sketch for a quote.

A solid black square on a white background.
AWM1 SWC-28 SWC-50 SWC-65 SWM1 SWM2 TWC TWM1 TWM2
NEHS-ERP-28-001* R/S
NEHS-ERP-28-000* S
NEHS-ERP-50-000 R/S R/S S R/S R/S R/S
NEHS-ERP-50-001 S S S S S S
NEHS-ERP-65-000 R/S S S R/S R/S R/S R/S R/S
NEHS-ERP-65-001 S S S S S S S S

*ERP 28 Series Light Modules are currently in development.

NEHS-ERP is designed to mate to with NewEnergy designed and supplied complementary heat sinks.

NEhs-ERP – Custom Heat Sink for ERP Light Modules

Part Number Table

(1) ERP base light modules are listed.

R= Rear Exit Lead / S= Side Exit Leads

(1) ERP base light modules are listed.

R= Rear Exit Lead / S= Side Exit Leads

NEHS-ERP is designed to mate with NewEnergy designed and supplied complementary heat sinks.

NEhs-ERP – Custom Heat Sink for ERP Light Modules PART NUMBER TABLE

*ERP 28 Series Light Modules are currently in development.

Part Number AWM1 SWC-28 SWC-50 SWC-65 SWM1 SWM2 TWC TWM1 TWM2
NEHS-ERP-28-001* R/S
NEHS-ERP-28-000* S
NEHS-ERP-50-000 R/S R/S S R/S R/S R/S
NEHS-ERP-50-001 S S S S S S
NEHS-ERP-65-000 R/S S S R/S R/S R/S R/S R/S
NEHS-ERP-65-001 S S S S S S S S
